Advantages: High strength and stiffness: The resin used in FRP cable core has high strength and stiffness, can withstand large tensile force and bending force, and meets the load-bearing requirements of the cable core.
Application scenarios: Communication cables: FRP cable core resin is used to make the filling layer of communication cables, which can improve the mechanical properties and temperature resistance of communication cables.
Liquid property index of resin:
Item | Unit | Data | Test method |

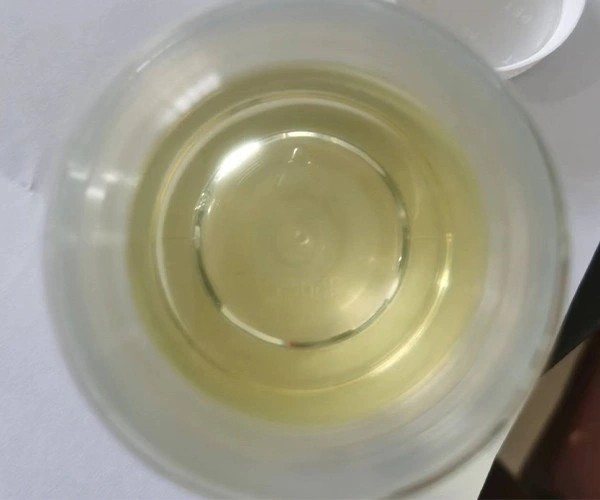

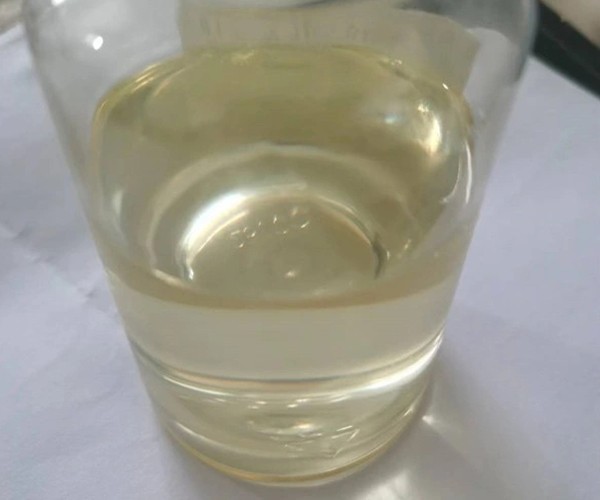

Appearance | ―― | Light yellow transparent liquid | GB/T8237-2005 |
Viscosity | PA·s (25ºC) | 0.30-0.6 | GB/T7193.1-2008 |
SPI-GT (min) | Min (25ºC) | 8-14 | SPI |
SPI-CT (min) | Min (25ºC) | 10-16 | SPI |
SPI-PET (ºC) | Min (25ºC) | 210-240 | SPI |
Resin casting body physical properties index:
Item | Unit | Data | Test method |
Tensile Strength | MPa | 80 | GB/T2567 |
Tensile Modulus | GPa | 3.1 | GB/T2567 |
Elongation | % | 3.5 | GB/T2567 |
Flexural Strength | MPa | 125 | GB/T2567 |
Flexural Modulus | GPa | 3.2 | GB/T2567 |
Impact toughness | (KJ/m²) | 15.5 | GB/T2567 |
Tg | ºC | 135 | DSC |
Note: Casting body sampling method is carried out according to GB/T 8237; casting body curing system: curing agent M-50 1.5%; casting body post-curing treatment: room temperature*24 hours + 60ºC* 3 hours + 120ºC*2 hours.
Three months from date of shipment, when stored in accordance with the storage conditionsstated below.
FAQ
1. How can I get a sample?
Small quality of sample in stock will be free, but the freight will be charged.
2. Are you able to adjust the formula to meet our requirement?
We have our own technical department, after you test the sample, please tell us your detailed requests, we are able to adjust the resin according to your requests, and bring better properties to your finished products.
3. What is the lead time for mass production?
Honestly, it depends on the quantity. We will try our best to make the production plan according to your ETA.
4. What is your terms of payment?
100% full payment for the 1st trial order; from next order, 30% payment in advance, 70% payment after buyer get the B/L copy. We also accept L/C if you need.
